Description

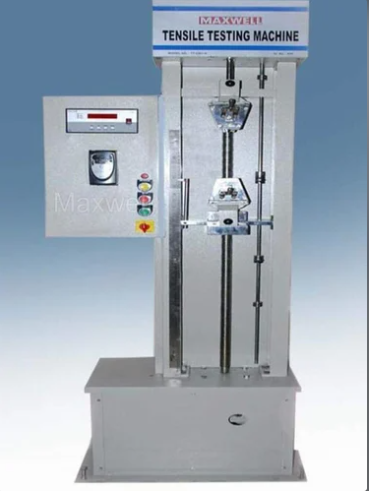

Tensile Testing Machine (Model TT-2541D) measures the force required to stretch a material and the extent to which it elongates before breaking. It’s essential in determining the tensile strength, yield strength, and ductility of materials, ensuring their suitability for various applications.
IS 7092(Part1):1992 , IS 7092(Part2):1987, IS 5484:1997 , IS 733:1983 , IS 1816:1961 , IS 734:1975 , IS 736:1986 , IS 737:2008 , IS 739:1992 , IS 740:1977 , IS 5082:1998 , IS 2067:1975

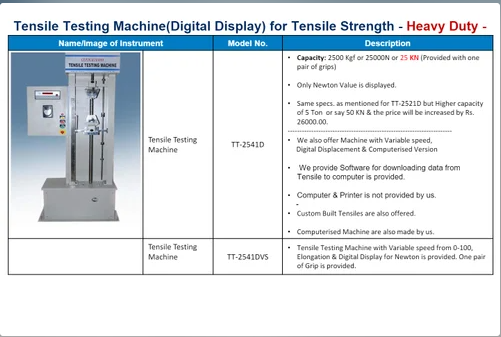

TENSILE STRENGTH of Material Testing
• Capacity: 2500 Kgf or 25000N or 25 KN (Provided with one pair of grips)
•Only Newton Value is displayed.
•Same specs. as mentioned for TT-2521D but Higher capacity of 5 Ton or say 50 KN & the price will be increased by Rs. 26000.00.
•We also offer Machine with Variable speed,Digital Displacement & Computerised Version
•We provide Software for downloading data from Tensile to computer is provided.
•Computer & Printer is not provided by us.-•Custom Built Tensiles are also offered.
•Computerised Machine are also made by us.
| Usage/Application | Industrial |
| Phase | 1 Phase |
| Capacity | 250 Kgf or 2500N |
| Accuracy | 0.05 % |
| IS Compliance | IS 734:1975 , IS 736:1986 , IS 737:2008 , IS 739:1992 , IS 740:1977 , IS 5082:1998 , IS 2067:1975 |
