Description
Specification
Type: Analog
Current: 10 Amps
Material: Manganin Wire Wound
Phase: Single Phase
Voltage: 220 V
Accuracy: Better than 0.2%
Range: 0.2 Micro Ohm to 11 Ohms
Detector Type: Null Detector
Technique: Current Balance Technique
Usage/Application: Industrial & Laboratory
Packaging Type: Box
Country of Origin: Made in India
Availability: In Stock
Technical Description
-
Specifically designed for measuring four-terminal resistors
-
Ensures high stability and repeatable accuracy
-
Built with manganin wire-wound resistors for excellent temperature coefficient control
-
Precision null detector ensures sensitive and stable readings
-
Analog operation for reliable field and lab use
Complete Set Includes
-

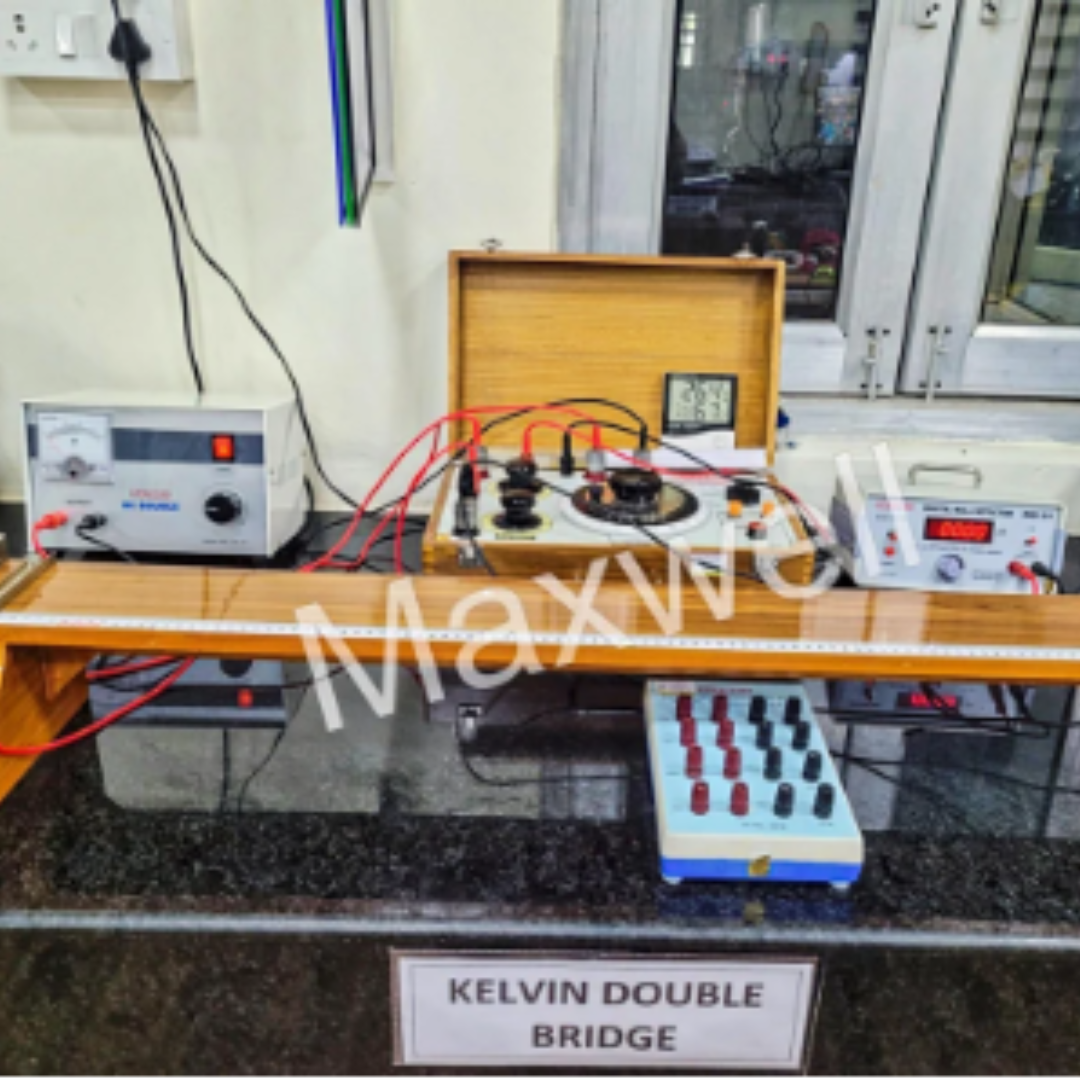

Kelvin Double Bridge – Model No. KDB-2031
-
Range: 0.2 µΩ to 11 Ω
-
Accuracy: Better than 0.2%
-
Optional: NABL Certification available at extra cost
-
-
Spot Reflecting Galvanometer – Model No. RG-321
-
DC Source (10 Amps) – Model No. DC-341
-
Equipped with an analog current meter
-
-
Attachment Cable (1 Meter Length) – Model No. CA-391
-
Brass Clamp with Terminals – For zero-setting calibration
Key Features
-
Compact and sturdy design
-
Easy to operate and maintain
-
Highly accurate and repeatable readings
-
Designed for industrial and laboratory-grade testing
-
Fully compliant with industry standards
Applications
Ideal for:
-
Conductor Resistance (CR) Testing
-
Low Resistance Measurement
-
Calibration Laboratories
-
Research & Development Facilities
